Case Cooler Master QUBE 540

Thương hiệu: Cooler Master | Tình trạng: Hết hàng

1.500.000₫

Năm sản xuất: 2025 - Chịu trách nhiệm về sản phẩm Công ty Vietrender - HDSD: Lắp đặt với linh kiện tương thích, đúng quy trình - CBBQ: Sử dụng trong môi trường thông thoáng, tránh vào nước.

Số lượng:

Mô tả
Tab tùy chỉnh
Đánh giá(APP)

Chất liệu: Sắt, Kính Cường Lực
Kích thước: 425 x 225 x 425 mm Fan hỗ trợ: 120mm / 140mm
Tản nước hỗ trợ: 240 / 280 / 360
Mainboard hỗ trợ: Mini ITX, M-ATX, ATX, E-ATX
Hỗ trợ tản nhiệt CPU: 172mm Hỗ trợ chiều dài GPU: 415 mm tối đa nếu không có fan trước
Product Name: QUBE 540
Model Number: Stardust Iron: Q540-MGNN-S00
Model Number: Moonstone: Q540-LGNN-S00

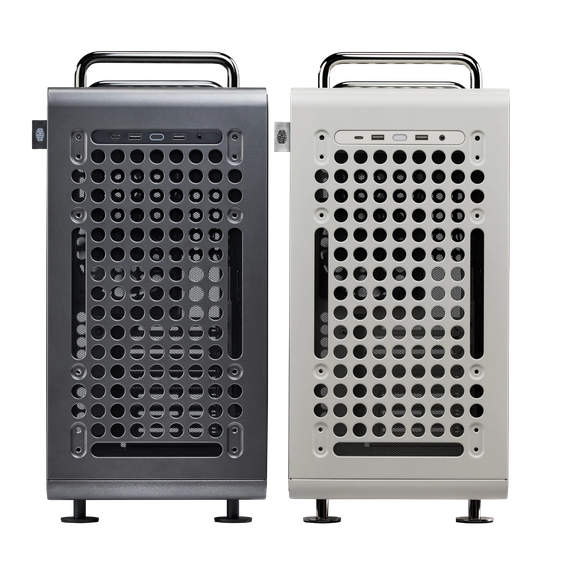

Color(s): Stardust Iron / Moonstone
Materials – Exterior: Steel
Material - Side Panel (Right): Steel
Material - Side Panel (Left): TG
Dimensions (L x W x H): Incl. Protrusions: 438.5 x 225 x 492.1 mm
Dimensions (L x W x H): Excl. Protrusions: 425 x 225 x 425 mm
Volume (w/o protrusions): 40.64 L
Volume (with panel, protrusions and feet): 48.55 L
Motherboard Support: ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)
Expansion Slots: 7
Drive Bays - 5.25" ODD: N/A
Drive Bays - 3.5" HDD: 1 (Shared 3.5" and 2.5" mounting on PSU bracket)
Drive Bays - 2.5" SSD: 2 (Max. 5)
I/O Panel - USB Ports: 2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
I/O Panel - Audio In / Out: 1 x 3.5 Mic / Audio Combo Jack
Fan Support – Front: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm
Fan Support – Top: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm
Fan Support – Rear: 1x 120mm
Fan Support – Bottom: 3 x 120 mm / 2 x 140 mm
Preinstalled Fan(s) – Front: N/A
Preinstalled Fan(s) – Top: N/A
Pre-installed Fans – Rear: 1x 120mm Black Fan
Radiator Support – Front: 140 / 280 / 360 mm (w/o I/O panel)
Radiator Support – Top: 140 / 280 / 360 mm (w/o I/O panel)
Radiator Support – Rear: 120 mm
Radiator Support – Bottom: 140 / 280 / 360mm (w/o I/O panel)
Clearances - CPU Cooler: 172 mm
Clearances - Power Supply: 200 mm
Clearances - Graphics Card:415 mm (w/o Front Fan)
Cable Routing - Behind Motherboard Tray: 27 mm
Dust Filters: Top / Bottom / Front
Power Supply Support: ATX / SFX
