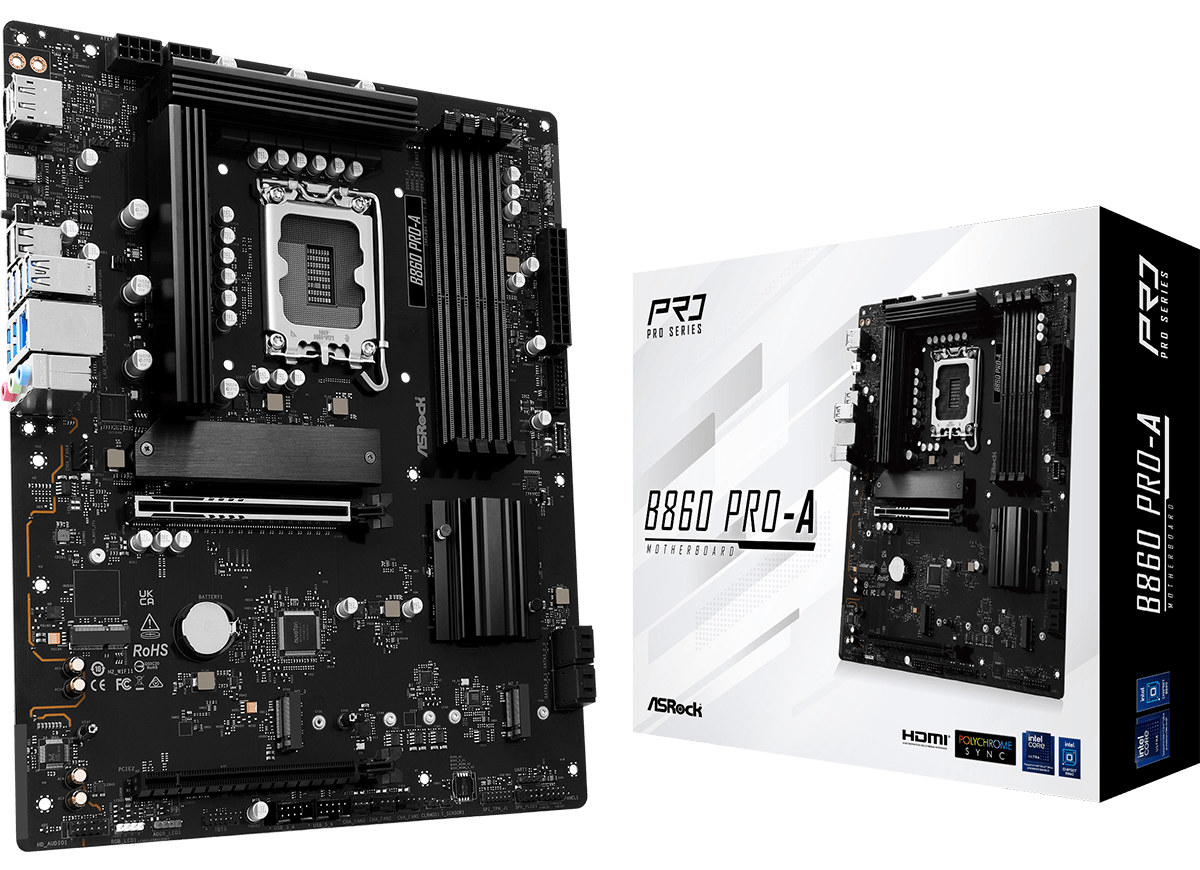

Mainboard Asrock B860 Pro-A (DDR5) - Intel

Thương hiệu: ASRock | Tình trạng: Hết hàng

Liên hệ

Năm sản xuất: 2025 - Chịu trách nhiệm về sản phẩm Công ty Vietrender - HDSD: Lắp đặt với linh kiện tương thích, đúng quy trình - CBBQ: Sử dụng trong môi trường thông thoáng, tránh vào nước.

Mô tả
Tab tùy chỉnh
Đánh giá(APP)

CPU
- - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- - Supports Intel® Hybrid Technology
- - Supports Intel® Turbo Boost Max 3.0 Technology
- - Supports Intel® Thermal Velocity Boost (TVB)
- - Supports Intel® Adaptive Boost Technology (ABT)
- - Integrated NPU for dedicated AI acceleration
Chipset
- - Intel® B860
Memory
- - Dual Channel DDR5 Memory Technology
- - 4 x DDR5 DIMM Slots
- - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
- - Supports Clocked Unbuffered DIMM (CUDIMM)
- - Max. capacity of system memory: 256GB
- - Supports Intel® Extreme Memory Profile (XMP) 3.0x
BIOS
- - 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
- - Intel® Xe LPG Graphics Architecture
- - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio
- - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- - Dragon RTL8125BG
- - Supports Dragon 2.5G LAN Software
- - Smart Auto Adjust Bandwidth Control
- - Visual User Friendly UI
- - Visual Network Usage Statistics
- - Optimized Default Setting for Game, Browser, and Streaming Modes
- - User Customized Priority Control
Slots
- CPU:
- - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
- CPU:
- - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- - 4 x SATA3 6.0 Gb/s Connectors
RAID
- - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
- CPU:
- - 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
- - 1 x USB 3.2 Gen1 Type-C (Front)
- - 8 x USB 3.2 Gen1 (6 Rear, 2 Front)
- - 6 x USB 2.0 (2 Rear, 4 Front)
Connector
- - 1 x SPI TPM Header
- - 1 x Power LED and Speaker Header
- - 1 x RGB LED Header*
- - 3 x Addressable LED Headers**
- - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
- - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- - 1 x 24 pin ATX Power Connector
- - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- - 1 x Front Panel Audio Connector
- - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- - 1 x Front Panel Type C USB 3.2 Gen1 Header
Rear Panel I/O
- - 2 x Antenna Mounting Points
- - 1 x HDMI Port
- - 1 x DisplayPort 1.4
- - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- - 6 x USB 3.2 Gen1 Ports
- - 2 x USB 2.0 Ports
- - 1 x RJ-45 LAN Port
- - 1 x BIOS Flashback Button
- - HD Audio Jacks: Line in / Front Speaker / Microphone
