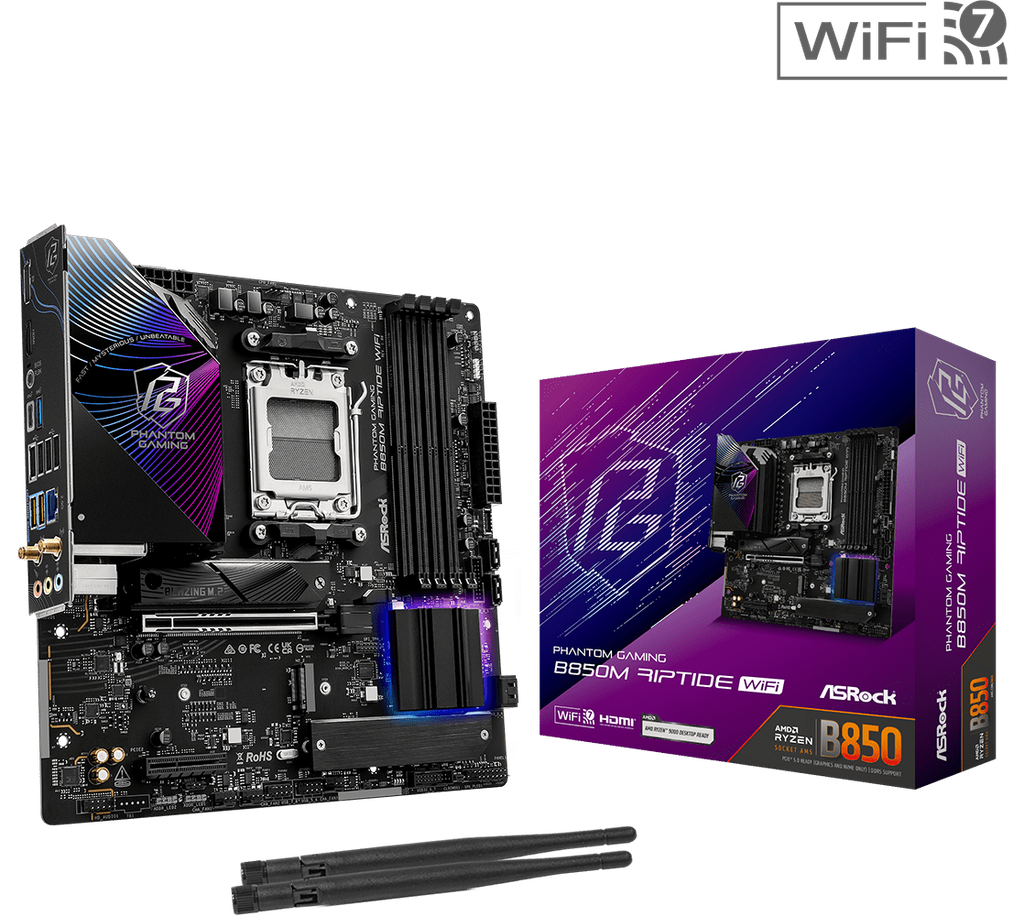

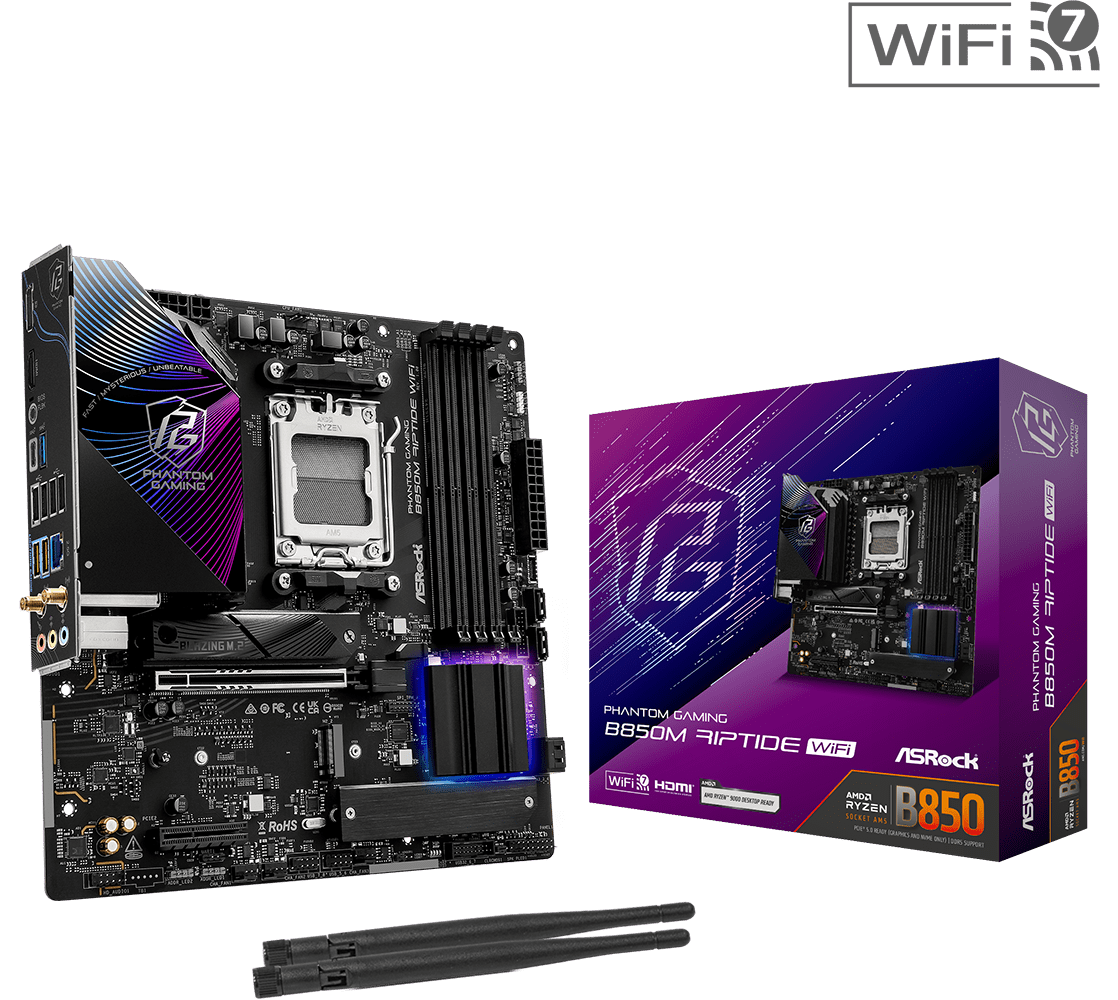

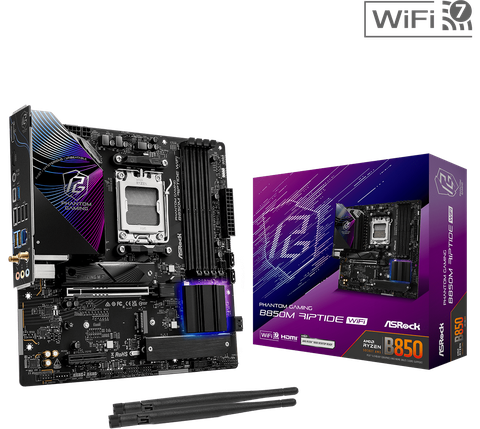

Mainboard Asrock Phantom Gaming B850M Riptide WiFi (AMD) - (DDR5)

Thương hiệu: ASRock | Tình trạng: Hết hàng

Liên hệ

Năm sản xuất: 2025 - Chịu trách nhiệm về sản phẩm Công ty Vietrender - HDSD: Lắp đặt với linh kiện tương thích, đúng quy trình - CBBQ: Sử dụng trong môi trường thông thoáng, tránh vào nước.

Mô tả
Tab tùy chỉnh
Đánh giá(APP)

CPU
- - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
Chipset
- - AMD B850
Memory
- - Dual Channel DDR5 Memory Technology
- - 4 x DDR5 DIMM Slots
- - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
- - Max. capacity of system memory: 256GB
- - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS
- - 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
- - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- - Impedance Sensing on Rear Out port
- - Individual PCB Layers for R/L Audio Channel
- - Nahimic Audio
LAN
- - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- - Dragon RTL8125BG
- - Supports Phantom Gaming LAN Software
- - Smart Auto Adjust Bandwidth Control
- - Visual User Friendly UI
- - Visual Network Usage Statistics
- - Optimized Default Setting for Game, Browser, and Streaming Modes
- - User Customized Priority Control
Wireless LAN
- - 802.11be 2x2 Wi-Fi 7 Module
- - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- - Supports 2.4GHz/5GHz/6GHz* frequency band
- - Supports 160MHz channel bandwidth with 6GHz* frequency band
- - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- - Supports Bluetooth 5.4
- - Supports MU-MIMO
Slots
- CPU:
- - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
- Chipset:
- - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
- CPU:
- - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- Chipset:
- - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- - 4 x SATA3 6.0 Gb/s Connectors
RAID
- - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
USB
CPU:
- - 1 x USB 3.2 Gen2 Type-C (Rear)
- - 1 x USB 3.2 Gen2 Type-A (Rear)
- - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2)) Chipset:
- - 1 x USB 3.2 Gen1 Type-C (Front)
- - 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front)
- - 8 x USB 2.0 (4 Rear, 4 Front)
Connector
- - 1 x SPI TPM Header
- - 1 x Thermistor Cable Header
- - 1 x Power LED and Speaker Header
- - 1 x RGB LED Header*
- - 3 x Addressable LED Headers**
- - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
- - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- - 1 x Front Panel Audio Connector
- - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- - 1 x Front Panel Type C USB 3.2 Gen1 Header
Rear Panel I/O
- - 2 x Antenna Ports
- - 1 x HDMI Port
- - 1 x DisplayPort 1.4
- - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- - 2 x USB 3.2 Gen1 Ports
- - 4 x USB 2.0 Ports
- - 1 x RJ-45 LAN Port
- - 1 x BIOS Flashback Button
- - HD Audio Jacks: Line in / Front Speaker / Microphone
