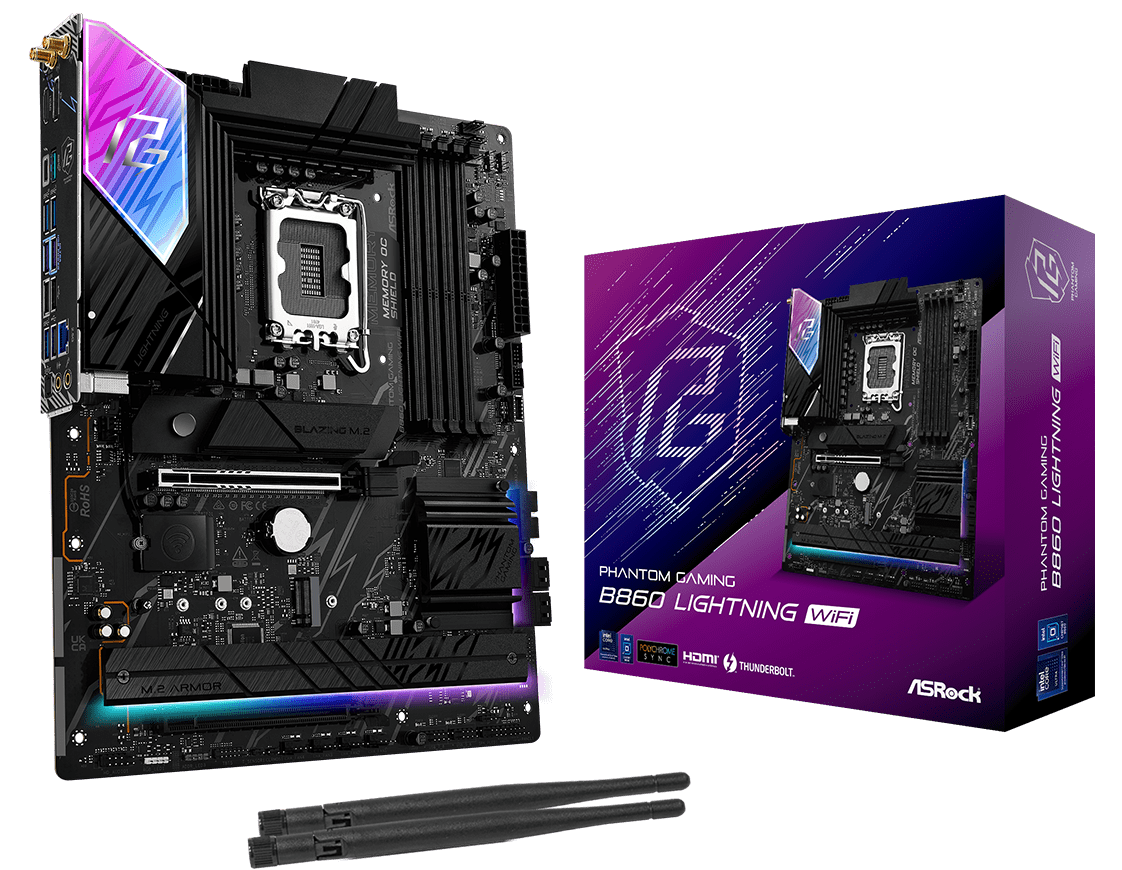

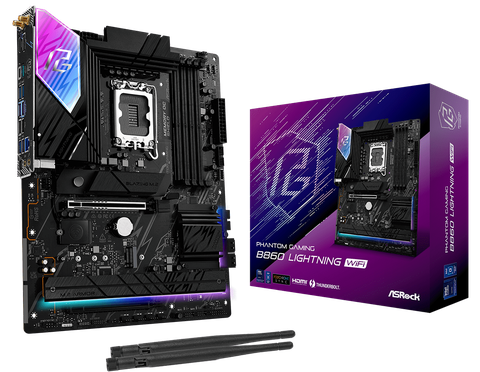

Mainboard Asrock Phantom Gaming B860 Lightning WiFi (DDR5) - Intel

Thương hiệu: ASRock | Tình trạng: Hết hàng

Liên hệ

Năm sản xuất: 2025 - Chịu trách nhiệm về sản phẩm Công ty Vietrender - HDSD: Lắp đặt với linh kiện tương thích, đúng quy trình - CBBQ: Sử dụng trong môi trường thông thoáng, tránh vào nước.

Mô tả
Tab tùy chỉnh
Đánh giá(APP)

CPU
- - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- - Supports Intel® Hybrid Technology
- - Supports Intel® Turbo Boost Max 3.0 Technology
- - Supports Intel® Thermal Velocity Boost (TVB)
- - Supports Intel® Adaptive Boost Technology (ABT)
- - Integrated NPU for dedicated AI acceleration
Chipset
- - Intel® B860
Memory
- - Dual Channel DDR5 Memory Technology
- - 4 x DDR5 DIMM Slots
- - Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC)*
- - Supports Clocked Unbuffered DIMM (CUDIMM)
- - Max. capacity of system memory: 256GB
- - Supports Intel® Extreme Memory Profile (XMP) 3.0x
Graphics
- - Intel® Xe LPG Graphics Architecture
- - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- - 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz**
Audio
- - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- - Impedance Sensing on Rear Out port
- - Individual PCB Layers for R/L Audio Channel
- - Nahimic Audio
LAN
- - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- - Killer E3100G
- - Supports Killer LAN Software
- - Supports Killer DoubleShot™ Pro
CPU:
- - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode*
- - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Wireless LAN
- - 802.11axe Wi-Fi 6E Module
- - Supports IEEE 802.11a/b/g/n/ac/ax/axe
- - Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
- - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- - Supports Bluetooth 5.3
- - Supports MU-MIMO
- - Supports Killer LAN Software
- - Supports Killer DoubleShot™ Pro
Storage
- CPU:
- - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- Chipset:
- - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- - 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
- - 4 x SATA3 6.0 Gb/s Connectors
Accessories
- - 2 x SATA Data Cables
- - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- - 1 x ARGB Splitter Cable
- - 1 x Thermistor Cable
